HOKUYO SAFETY LASER SCANNER
Safety Laser Scanners are presence sensing devices, also known as active opto-electronic protective devices responsive to diffuse reflection (AOPDDR). They are used to safely monitor stationary or mobile applications and are commonly used in robotic work cells or on autonomous mobile robots (AMR) and automated guided vehicles and carts (AGV, AGC). Safety Laser Scanners are one of the most effective presence sensing technologies as they can cover a wider area than compared to other solutions. The safety monitoring area generally comprises a wide warning zone and a narrower protection zone.
OVERVIEW
- Compact size 3.75” x 3.15” x 3.15”
- 270 degree detection angle
- 5 meter protection zone
- 20 meter warning zone
- Data Output via Ethernet
- Dual zone monitoring option

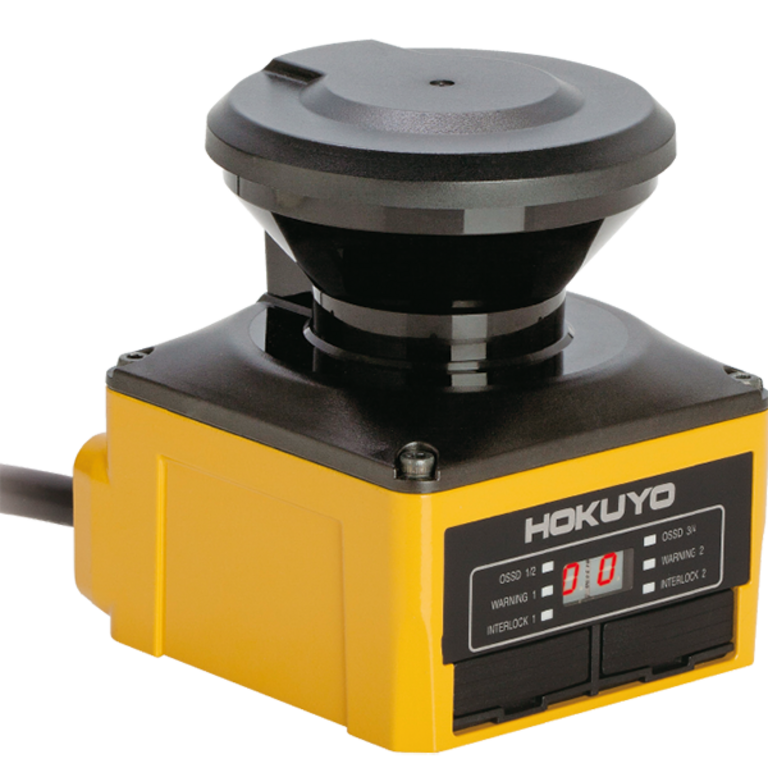

The UAM-05LP is a compact and light-weight safety scanner which can be mounted in confined spaces. It uses a 2D LiDAR system to monitor a 5 meter protection zone, with up to 20 meter warning area, and has a 270° field-of-view. It is equipped with an Ethernet interface, so distance data and intensity output values can be captured and sent to control systems.
Special brackets are available for base or rear mounting, and a cover bracket prevents damage from materials falling on the scanner head.
The UAM-05LP conforms to standards: IEC61469-1/3 Type 3; IEC61508 SIL2; ISO13849-1 PLd Category 3; UL508; UL1998; UL61496-1 Type 3; CSA C22.2 No. 14.
As one of the smallest scanners on the market, the UAM safety laser scanner provides a reliable solution for maximizing safety and preventing potentially unsafe situations in many industrial sectors.
FEATURES
Physical features

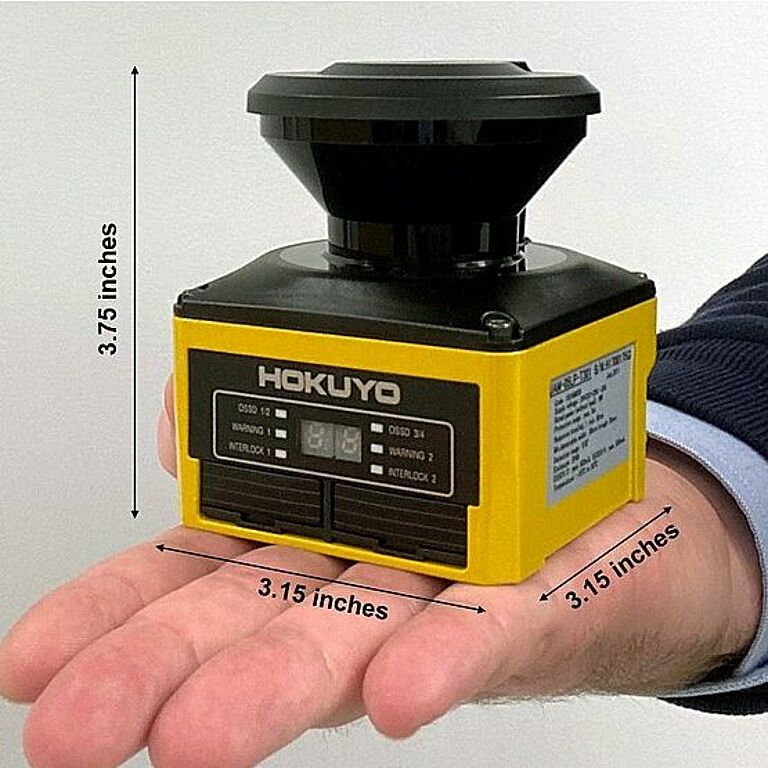

Dimensions
- 3.75 inches x 3.15 inches x 3.15 inches.
- The scanner fits in the palm of your hand.
Programming connections:
- MicroSD card slot and USB port for computer programming
Front display
- LEDs and a pair of 7 segment displays
- Indicates operation status and fault codes
BROCHURE

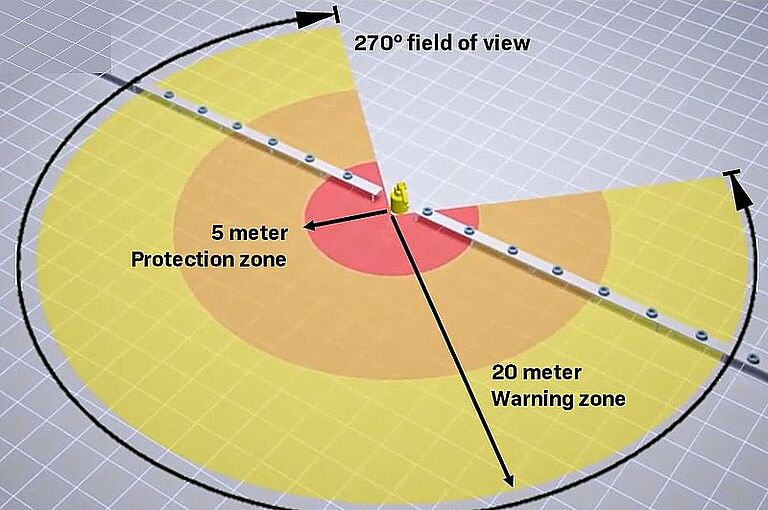

Scanning field
- 5 meter protection zone
- 20 meter warning zone
- 270 degree field of view
Programming allows for custom field settings to ignore stationary obstructions in the field.
Can be set to monitor two separate, adjacent zones
Typical Applications

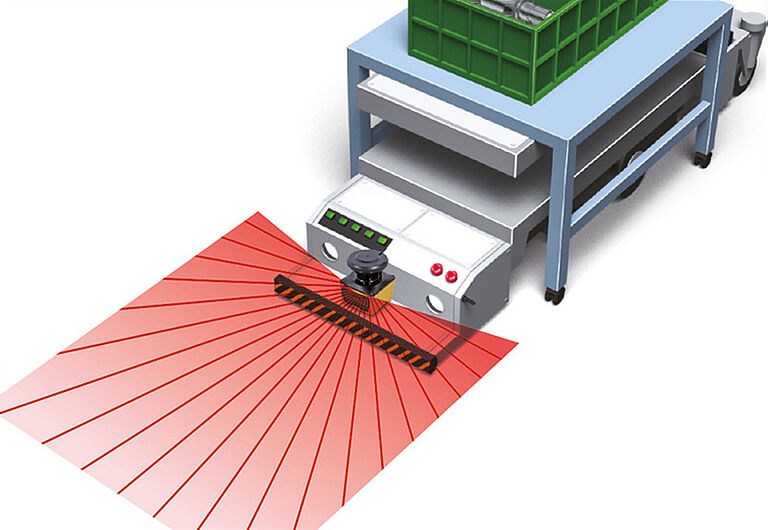

Collision detection
- Automated guided vehicles
VIDEO

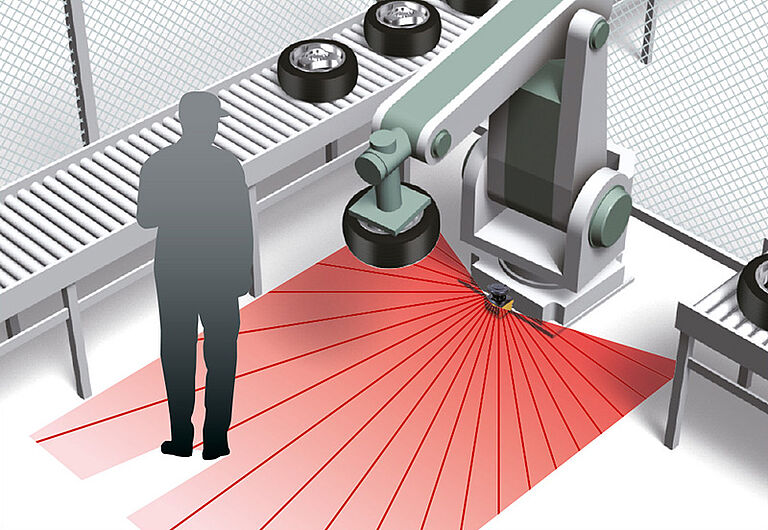

Presence detection
- Robot cells
- Palletizers

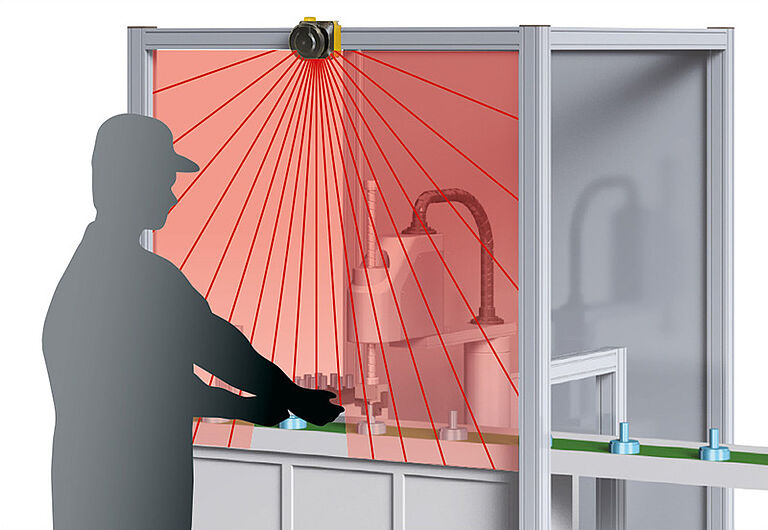

Point of operation
- Presses
- Printing machines
- Injection molding
- CNC Machines
- Assembly Equipment
