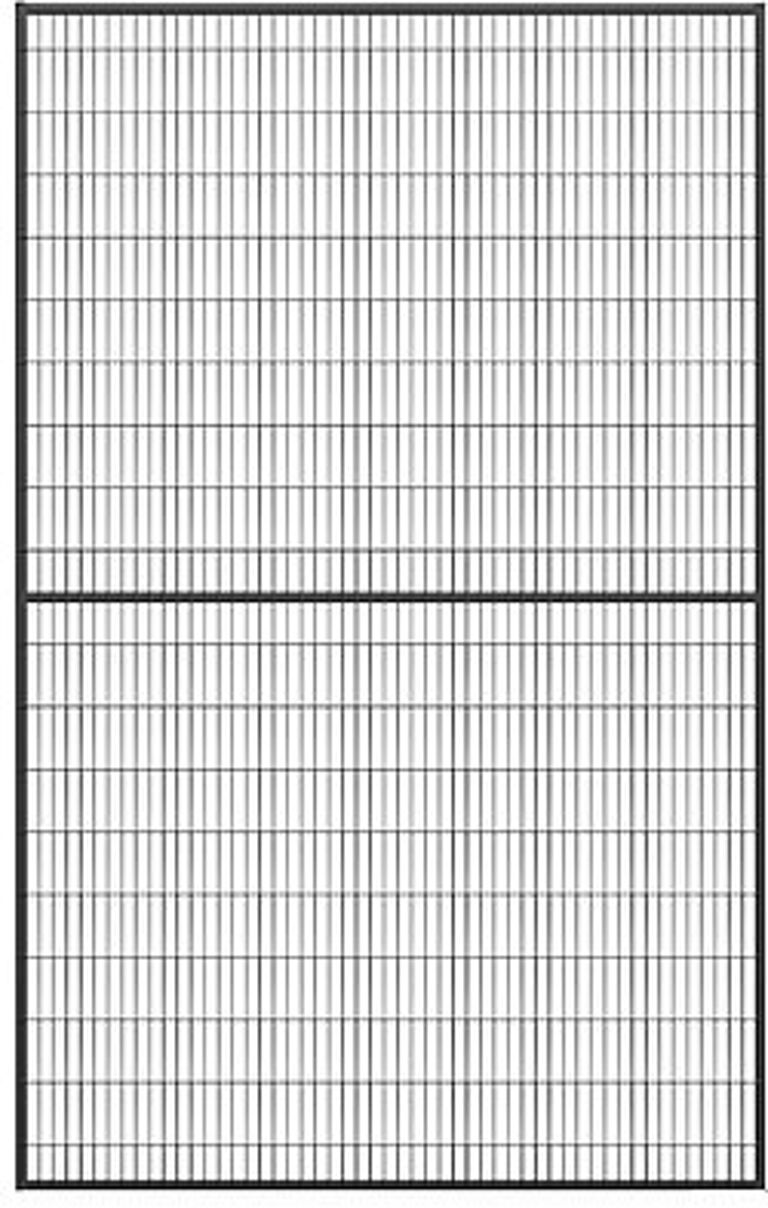

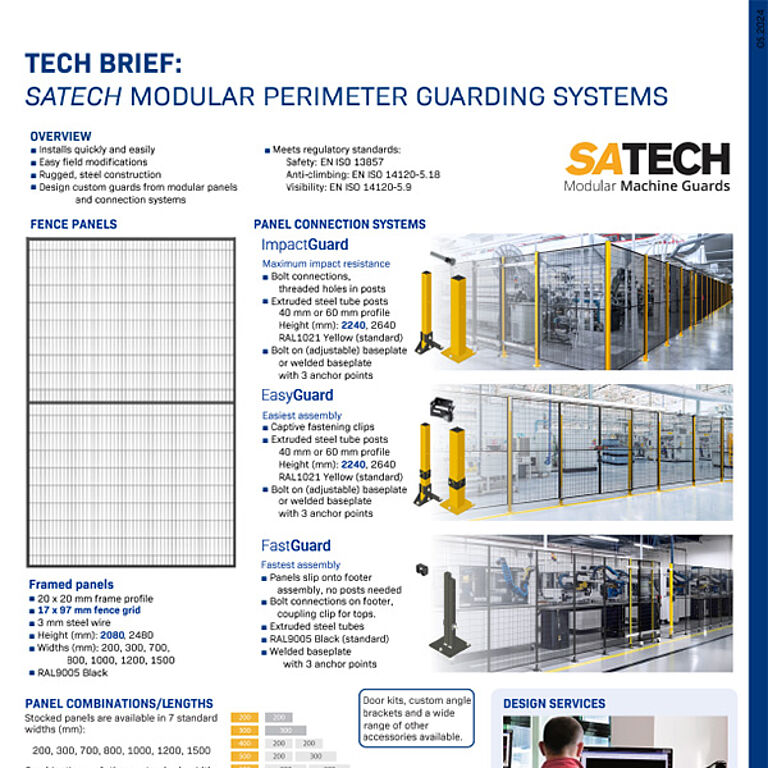

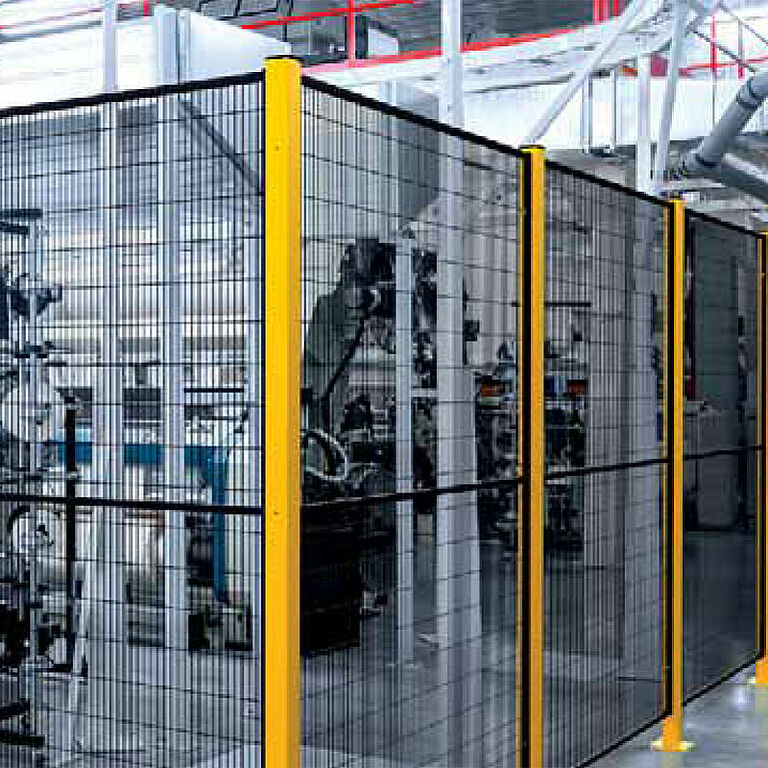

Fence mesh is constructed by 3mm diameter steel wire, arc welded at each junction. The frames are available in 20 x 20mm and 30 x 30mm extruded steel tubes, welded at each junction.
Fencing mesh is spaced with 17mm x 97mm slots. This narrow opening means that the panels can be mounted just 120mm from the danger zone, per EN ISO 13857. The design also deters workers from climbing the fence by providing no toe holds, when panels are installed with the cross pieces inside the hazardous area, per EN ISO 14120-5.18.
Fence panels are finished in black (RAL9005) epoxy paint. This colour, combined with the predominantly vertical slot opening, reduces interference when trying to view processes on the far side of the fence.
Stocked panels are available in three different heights: 1480mm, 2080mm and 2220mm in 7 standard widths: 200, 300, 700, 800, 1000, 1200, 1500mm. Combinations of these standard widths reach the intermediate dimensions, in 100mm steps. Panels are bolted to each other to fill the required spacing between posts.
Mark Langfield
Applications Engineer
Schmersal UK/IRL
Phone: +44-(0) 1684 571980 Ext: 2
Mobile: 07593 099563
mlangfield@ schmersal.com
Maximum impact resistance

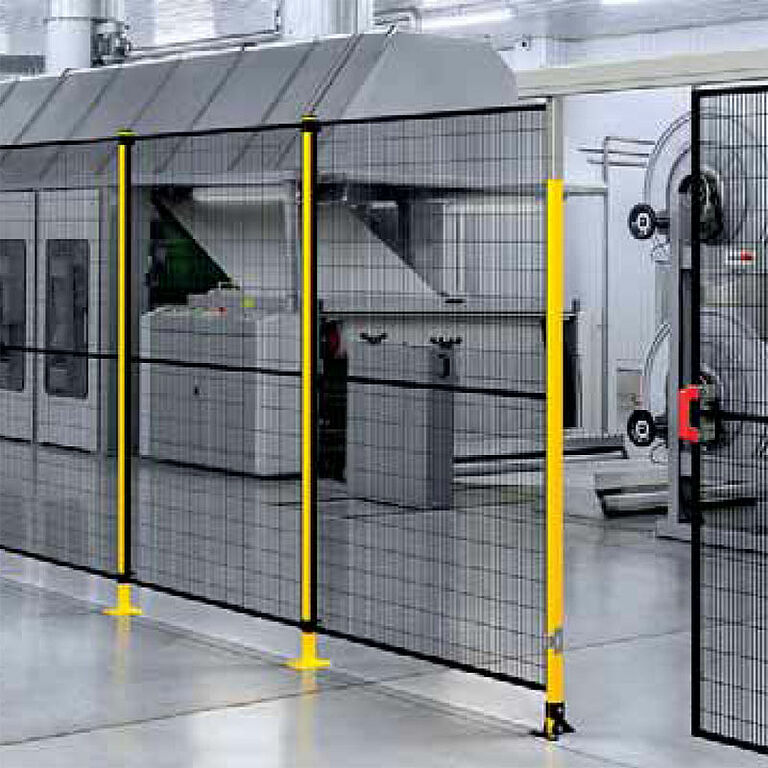

Easiest assembly

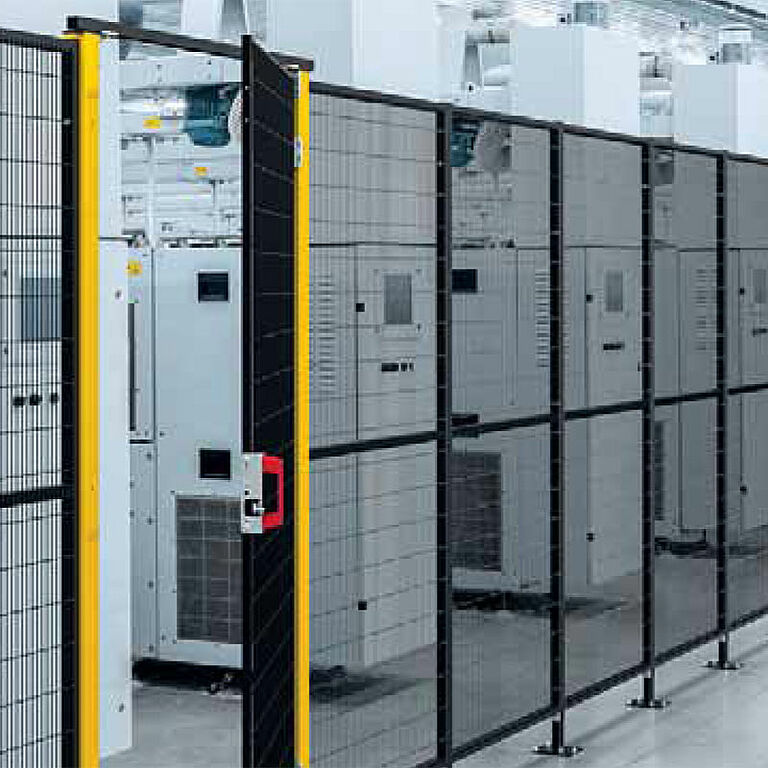

Fastest assembly
These systems are custom designed for each client. We collaborate on the design to meet the specific requirements of each customer. SATECH’s patented 3D AutoCAD program with a built-in library of parts enables the design of complex layouts in a very short time. A layout can be designed directly onto a customer’s drawing – which immediately picks the optimal modular components. This service also provides a 3D drawing and a complete parts list which can be easily understood by assembly personnel.
The custom designed solutions will include all the necessary installation hardware. The system utilizes patented captive fastening systems, in accordance with Machinery Directive 2006/42/CE; if a panel needs to be temporarily removed, the fastening hardware will remain in place so pieces will not be lost.

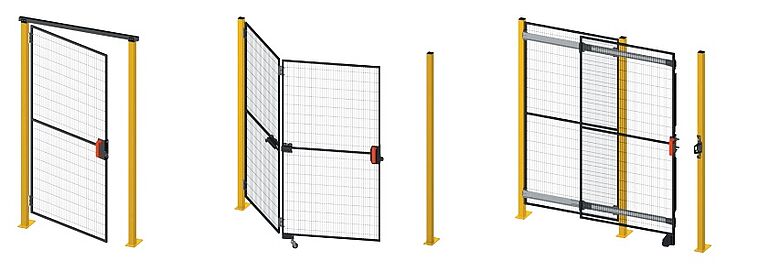

The system also offers several types of doors for access to the protected areas. Additional accessories to finish off the system include cable duct supports, reinforced linear joint, rubber profile for cutouts, adjustable angular joint, post braces, and much more.

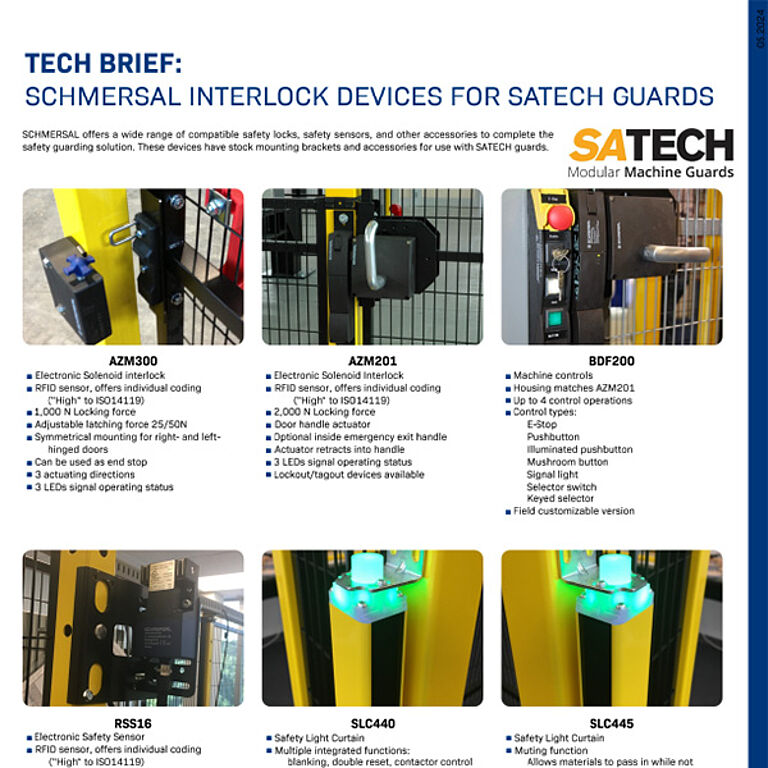

We also offer a wide range of compatible safety sensors, locks, and door handle assemblies for the complete safety solution.
